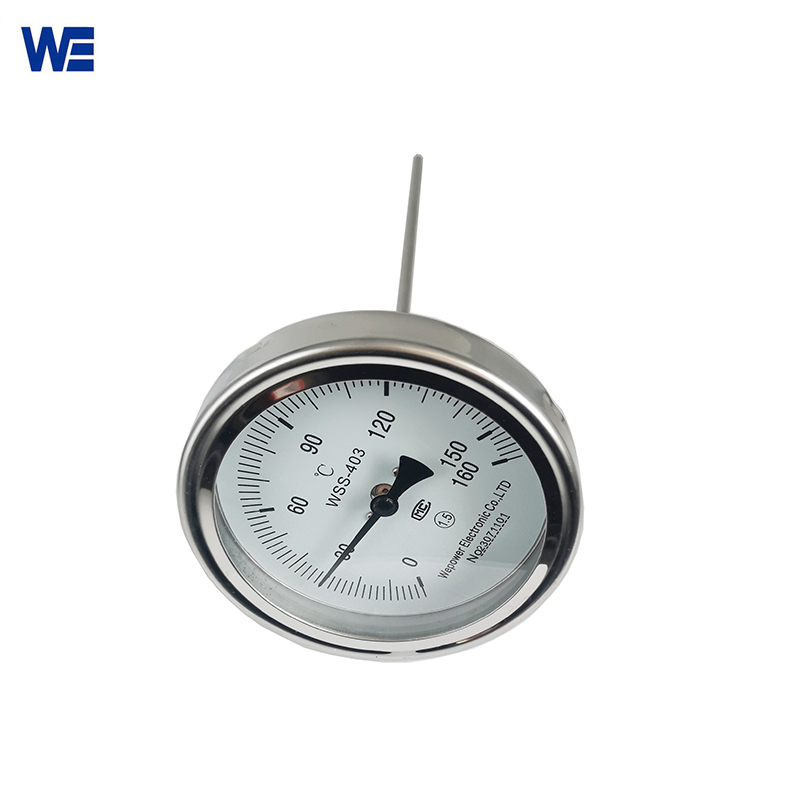

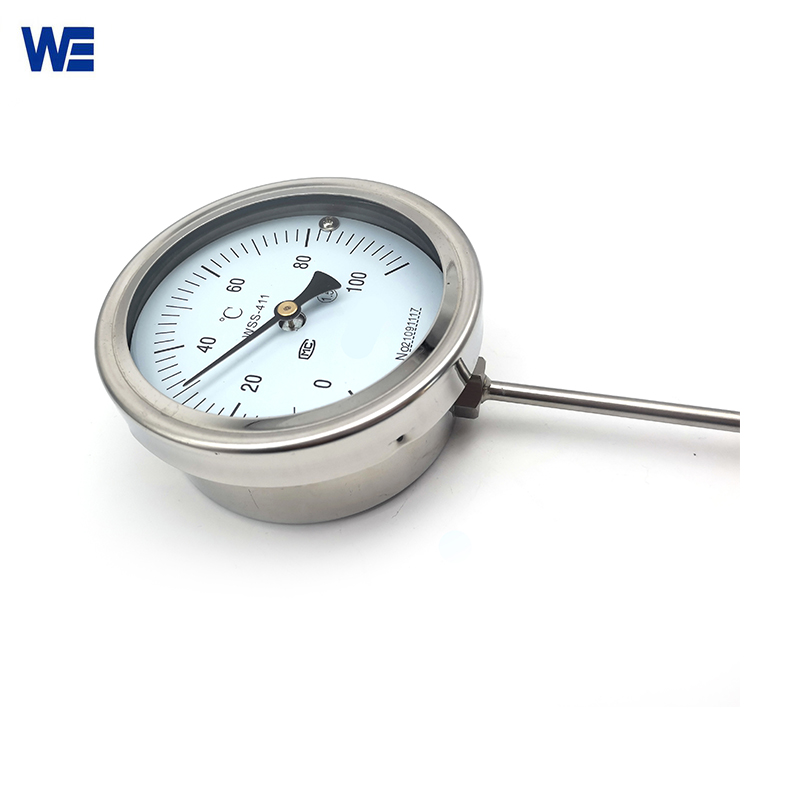

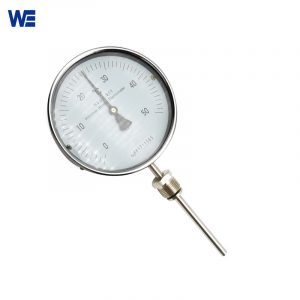

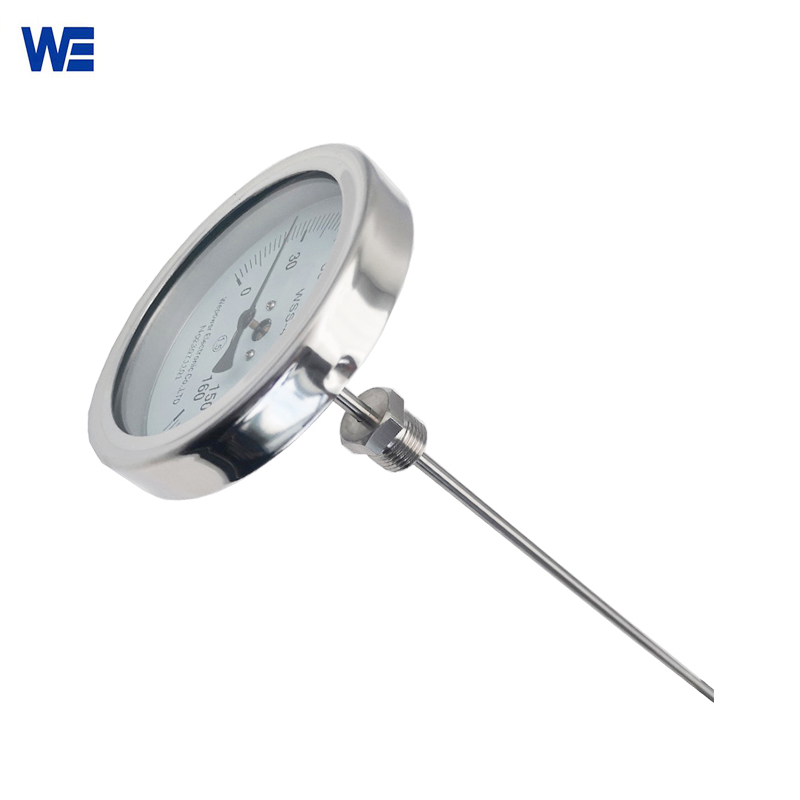

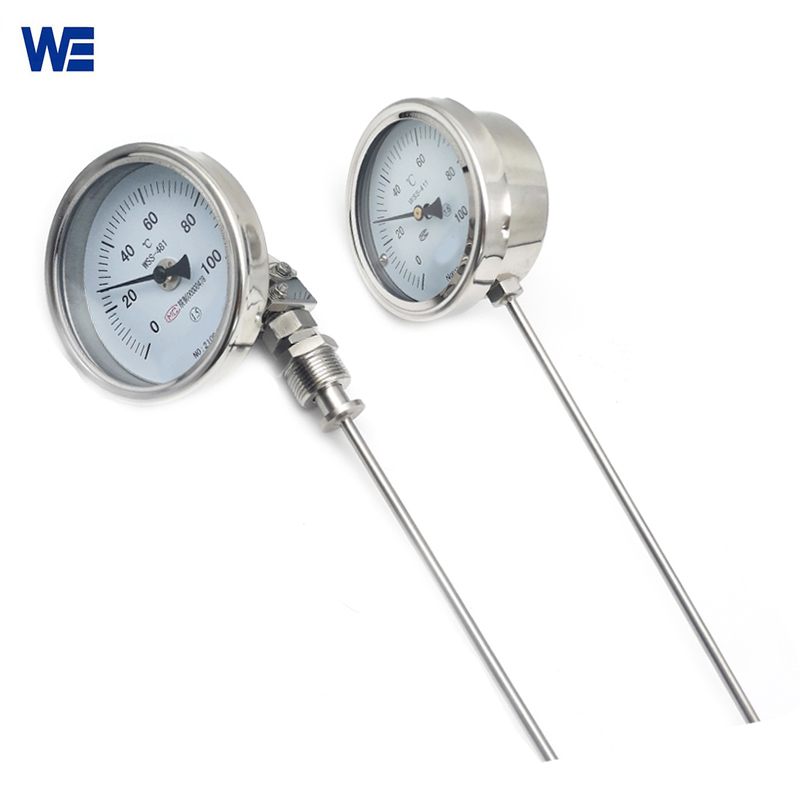

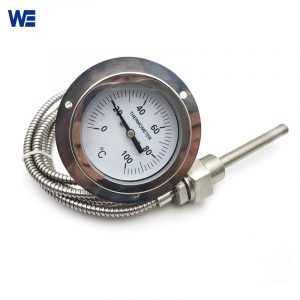

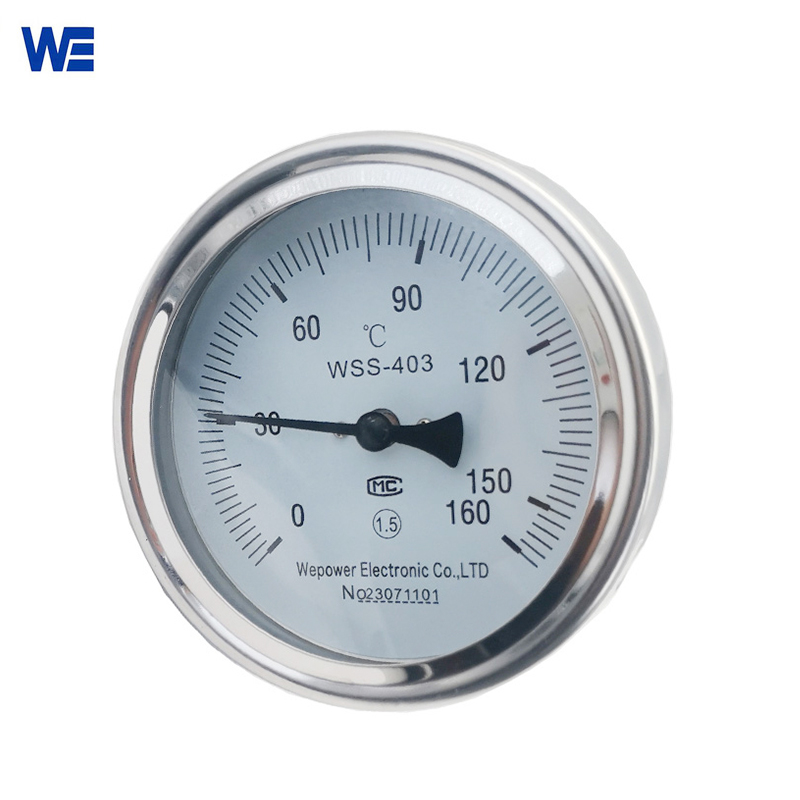

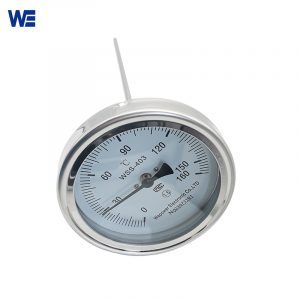

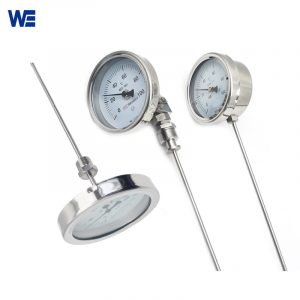

Bimetal Type Thermometer
Because of their widespread use, ease of installation, and long lifespan, bimetal type thermometers are perfect for process industries, particularly those in the chemical, oil and gas, power engineering, and shipbuilding sectors.
Working Principle Of Bimetal Type Thermometers:
Temperature measurement is a crucial component of industrial monitoring and control. An excellent and reasonably priced option for measuring temperature in industrial environments is a Bimetal Type Thermometer. The bimetal type thermometer is a mechanical instrument made of two distinct metals joined in a helix or spiral pattern. One metal expands more than the other when this spiral is heated, which makes the spiral revolve. A gauge mechanism then transforms this rotating movement into a temperature readout.
Applications:
- Food and beverage industry
- Heating, ventilation, air-conditioning
- Heating systems
- Process instrumentation for general use in the water and wastewater, oil and gas, chemical, and petrochemical industries.
Parameters:
| Product Name | Bimetal Type Thermometer |
| Temperature Range | -30…+60,0….100,0…120,0…160,0…200,0…300,
0…350,0…400,0..500,0…600 |
| Material | stainless steel 304/316 |
| Accuracy | 1.5% of range |
| Diameter of Dial Indicator | φ100mm;150mm;75mm;63mm |
| Capillary Material | SS304/SS316 |
| Probe Diameter | φ6, φ10, φ12 |
| Process connecting Method | Without fixed
Movable thread outer Movable thread inner Fixed thread Fixed flange Adjustable thread Adjustable flange |
| Thread | M16X1.5; M27X2; G1/2; G3/4,M33×2 |

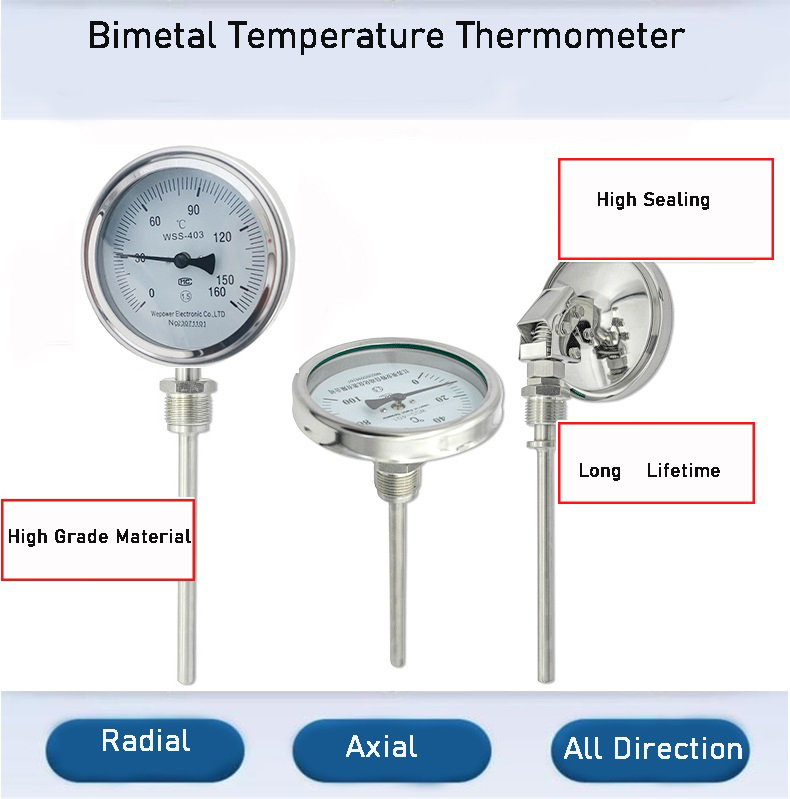

| Direction | Axial/Radial |

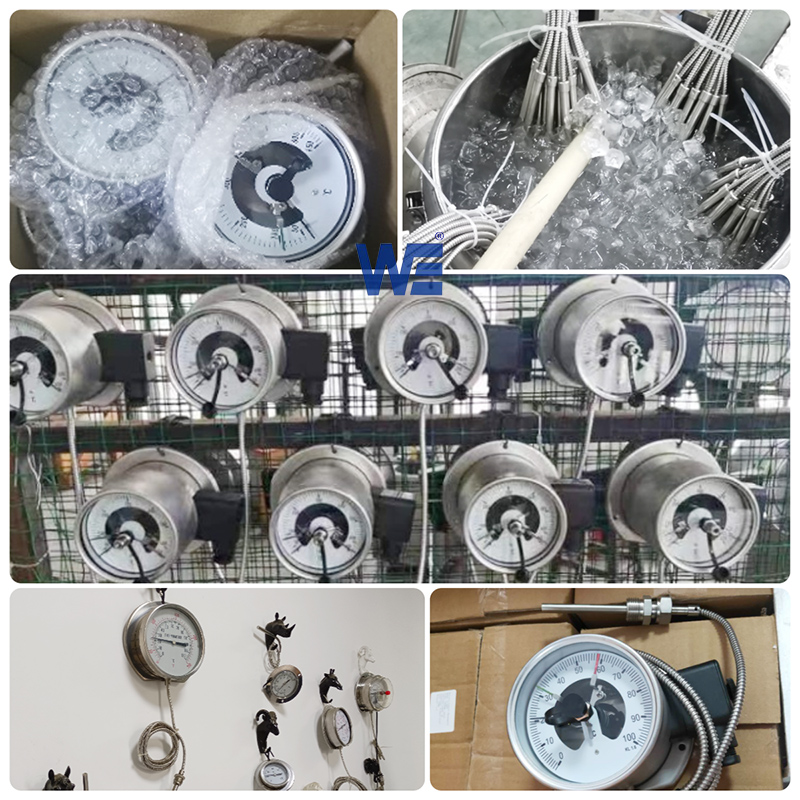

| Contact Type(for electric contact type): | NO,NC,NONO,NCNC,NONC,NCNO,SPDT |
