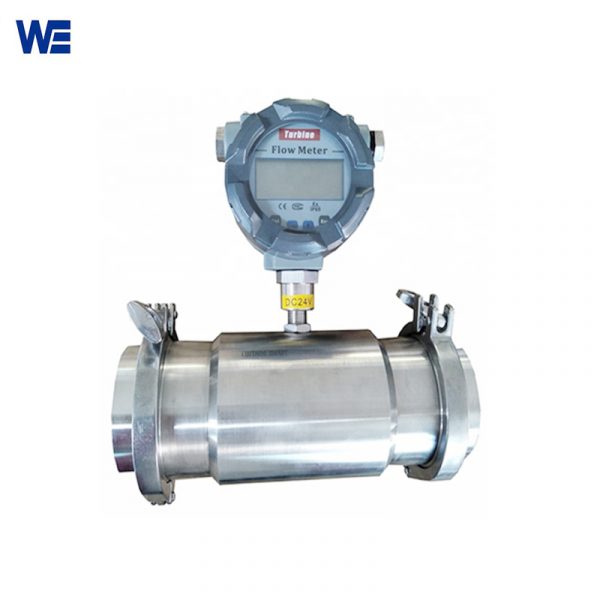

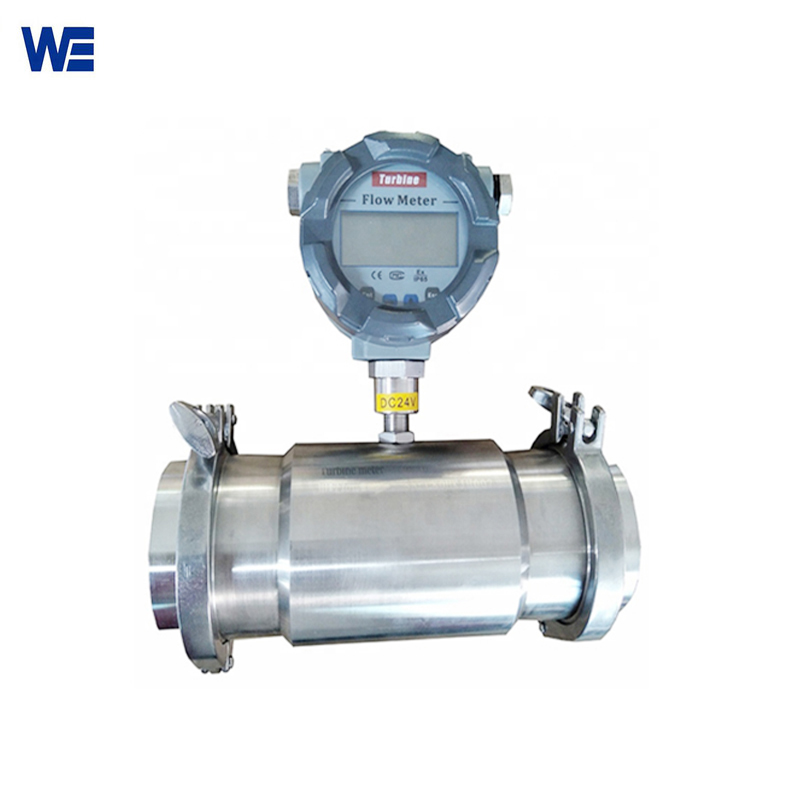

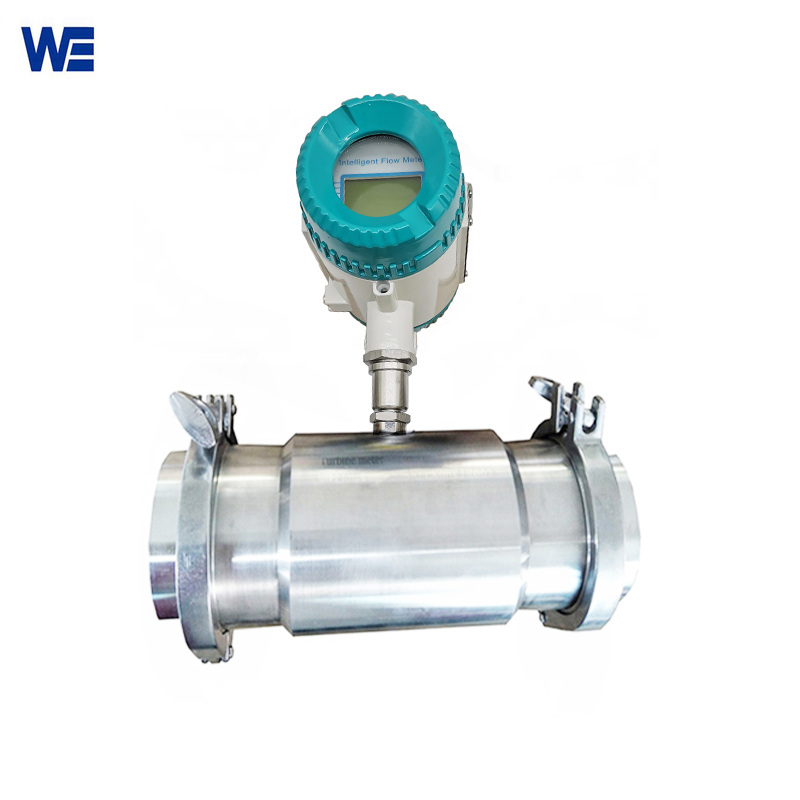

Alcohol Flow Meter
Alcohol flow meter is also called colorless liquor turbine flow meter. The proper measurement of alcohol is inextricably linked to the measurement of turbine flow meters. Vodka turbine flow meters, alcohol turbine flow meters, and different white wine turbine flow meters are frequently utilized.
When measuring the flow of liquor, we use a turbine flowmeter. In use, alcohol flow meter is recommended to measure at room temperature and in a relatively closed indoor environment. Due to the volatile effect of liquor, volatile gas is easily generated in the process of brewing liquor, and improper use will cause safety hazards.The alcohol flow meter is mainly used to measure colorless wines with high alcohol concentration such as vodka, Chinese baijiu, and white wine. Our Turbine type alcohol flow meters can be used in automated production by 4-20mA output.
| Measuring diameter | DN4-DN200 |
| Applicable media range | impurity-free, low viscosity, no strong corrosive liquid |
| Accuracy | 1% |

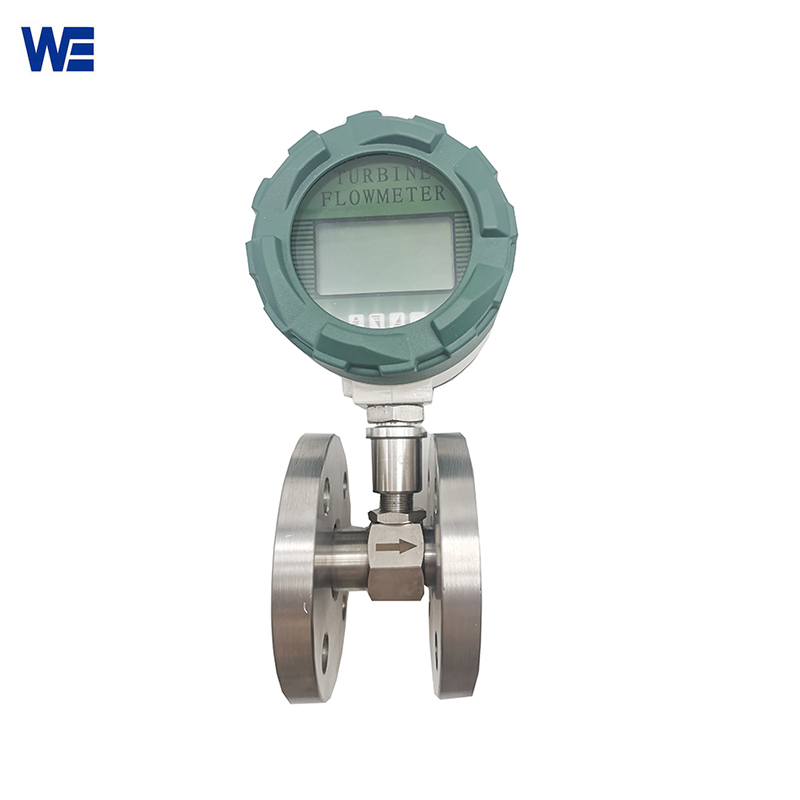

| Connection method | flange, thread, clamping |
| Medium temperature | -20°C~80°C |
| Nominal pressure | 1.6MPa、4.0MPa、6.3MPa、11MPa、15MPa、26MPa、42MPa |
| Precision class | 0.2, 0.5, 1.0, 2.5 |
| Signal output | Pulse, 4-20Ma, RS485, HART |
| Power supply | DC24V Meter head display 3.6V or DC24V+3.6V |
| Ambient temperature | -20°C~60°C |
| Relative humidity | 5%~90% |
| Meter body material | 304, 316L stainless steel |
| Protection class | IP65 |
| Explosion-proof grade | ExdIICT6Gb |
| Impeller material | 2Cr13 impeller |
| Pressure resistance grade | Duplex steel impeller |
| Diameter | Normal flow range（m³/h） | Extended flow range（m³/h） | Conventional connection |
| DN4 | 0.04-0.25 | 0.04-0.4 | Threaded connection 6.3MPa |
| DN6 | 0.1-0.6 | 0.06-0.6 | |
| DN10 | 0.2-1.2 | 0.15-1.5 | |
| DN15 | 0.6-6 | 0.5-5 | |
| DN20 | 0.8-8 | 0.45-9 | |
| DN25 | 1-10 | 0.5-10 | |
| DN32 | 1.5-15 | 0.8-15 | |
| DN40 | 2-20 | 1-20 | |
| DN50 | 4-40 | 2-40 | Flange connection 4.0MPa |
| DN65 | 7-70 | 5-70 | Flange connection 1.6MPa |
| DN80 | 10-100 | 7-100 | Flange connection 1.6MPa |
| DN100 | 20-200 | 10-200 | Flange connection 1.6MPa |
| DN125 | 25-250 | 13-250 | Flange connection 1.6MPa |
| DN150 | 30-300 | 15-300 | Flange connection 1.6MPa |
| DN200 | 80-800 | 40-800 | Flange connection 1.6MPa |
| Accuracy level | 0.5 | 1.0 |
| Diameter | Normal flow range（m³/h） | Extended flow range（m³/h） | Starting flow rate (m³/h) | Maximum pressure loss (KPa) |
| DN4 | 0.04-0.25 | 0.04-0.4 | 0.02 | 120 |
| DN6 | 0.1-0.6 | 0.06-0.6 | 0.05 | 80 |
| DN10 | 0.2-1.2 | 0.15-1.5 | 0.07 | 50 |
| DN15 | 0.6-6 | 0.5-5 | 0.35 | 35 |
| DN20 | 0.8-8 | 0.45-9 | 0.3 | 35 |
| DN25 | 1-10 | 0.5-10 | 0.4 | 35 |
| DN32 | 1.5-15 | 0.8-15 | 0.6 | 35 |
| DN40 | 2-20 | 1-20 | 0.6 | 35 |
| DN50 | 4-40 | 2-40 | 1 | 35 |
| DN65 | 7-70 | 5-70 | 4 | 25 |
| DN80 | 10-100 | 7-100 | 5 | 25 |
| DN100 | 20-200 | 10-200 | 8 | 25 |
| DN125 | 25-250 | 13-250 | 10 | 25 |
| DN150 | 30-300 | 15-300 | 12 | 25 |
| DN200 | 80-800 | 40-800 | 20 | 25 |
All our LWGY turbine flow meter 100% checked and calibrated before shipment to ensure the accuracy, you can ask us to provide you the factory testing report paper together with the turbine flow meter. On our website, you may find more precise instruments and are invited to purchase them.
