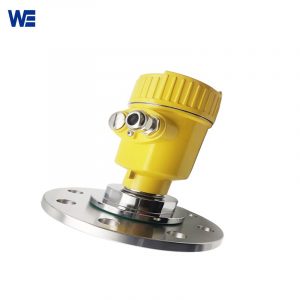

80G Radar Gauge
Wepower Electronic 80G radar gauge successfully solve the difficulties in tank level measurement. 80g radar gauge reach 2mm accuracy and is one of the most affordable and useful high precision level instrument.
All WEpower 80g radar gauges are made in chinese factory, using advanced, stable and reliable radar detection manufacturing technology.
High quality 80g radar gauge is a real-time monitoring sensor. Wepower Electronic only supplies quality tested radar gauges and we offer 12-month warranty. radar level transmitter uses non-contact technology that eliminates the need for physical contact with the liquid or solid, minimizing the risk of contamination or damage to the equipment.
About Wepower 80G radar gauges:
▲Pre-calibrated ease of use mode
▲Two-wire interface/four-wire interface
▲Non-contact measurement
▲Minimum blind area of 0.1m
| Name | 80G radar gauges |
| Model | WERD- 91S |
| Medium | Corrosive liquids ; Hygienic ; Heavy Steam /Bubble |
| Antenna Type | PTFE; Lens(42mm ; 46mm ; 76mm) |
| Measure Range | 0-10m |

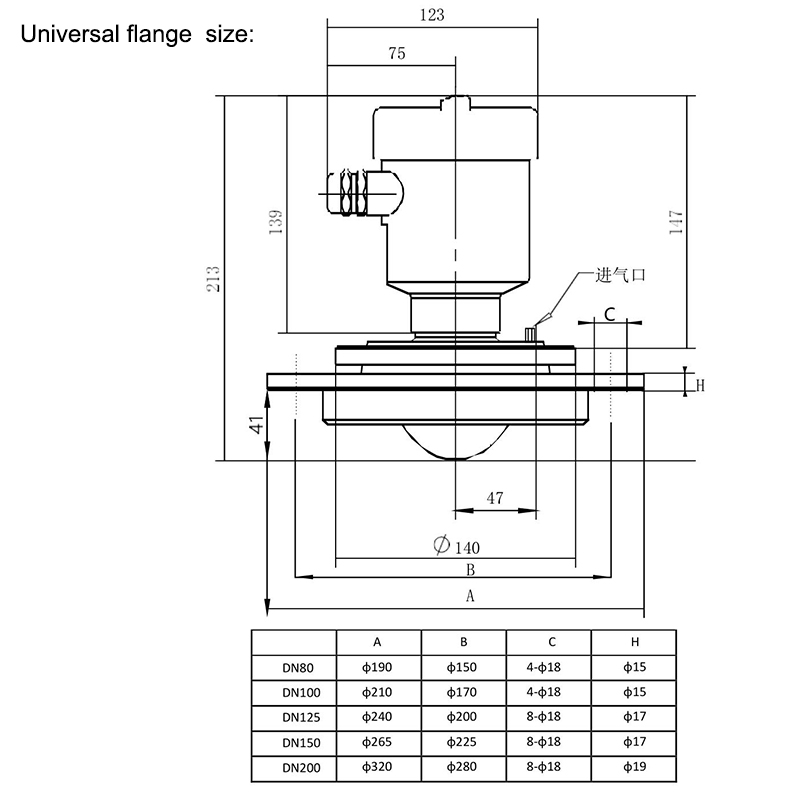

| Mounting | Thread G1 .5 /Flange |
| Accuracy | ±2mm |
| Response time | 0.6s (due to parameter setting) |
| Display | LCD display |
| Beam angle | 6° |
| Microwave frequency | 76-81 GHz,5GHz FMCW bandwidth |
| Output signal * | 4-20mA +HART, RS485 MODBUS -RTU |
| Power supply * | DC 6-24V, AC 220V/50Hz |
| Material | Shell: aluminum, process connection: 304 stainless steel, |
| Pressure | up to 2MPa |
| Storage temperature | -40~+120℃ |
| Protection class | IP68 |
| Warranty | 12 months |
