The radar liquid level sensor was created specifically to measure the level of volatile liquid tanks. Our radar liquid level sensor’s distinctive design results in a sealing effect that is remarkably effective, hygienic, and secure. Follow our website for additional information about various radar level sensors.
The shiny surface of the Radar Liquid Level Sensor is made of polished stainless steel 304. Radar liquid level sensors are recommended to apply to highly volatile liquids. In general, concentrated nitric acid, concentrated hydrochloric acid, alcohol, chlorinated water, and other liquids are frequently measured by radar liquid level sensors.

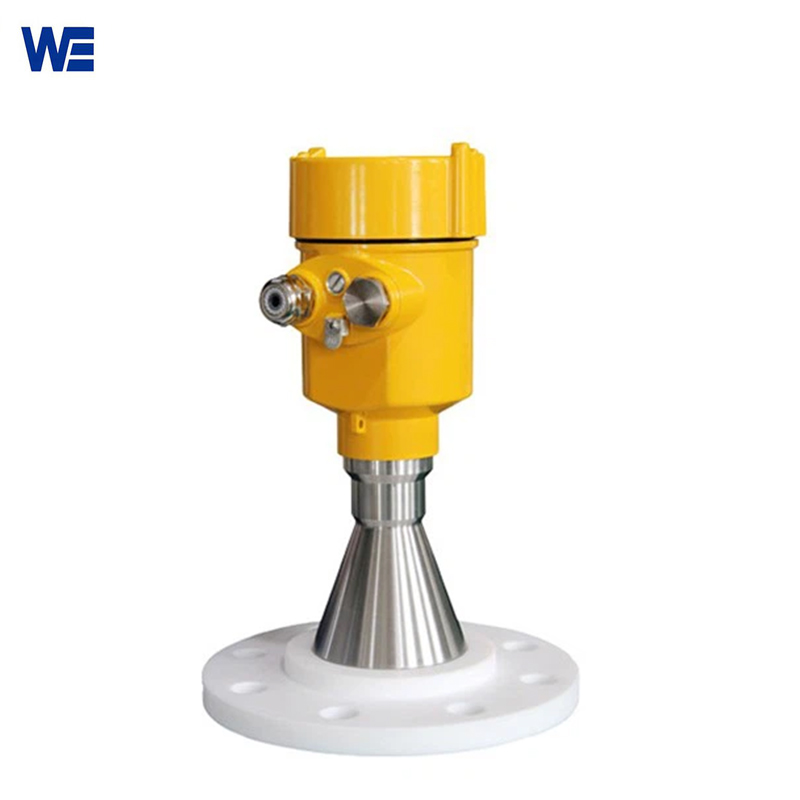

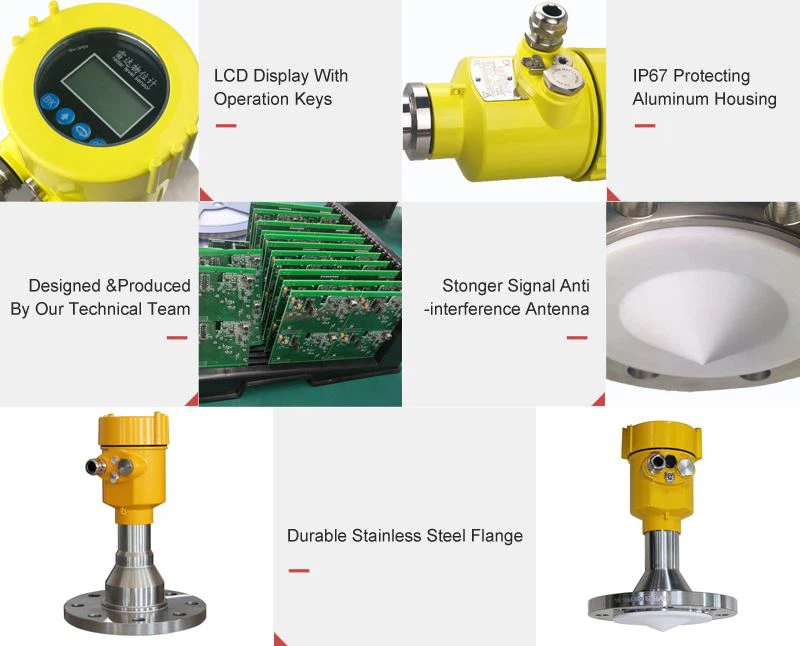

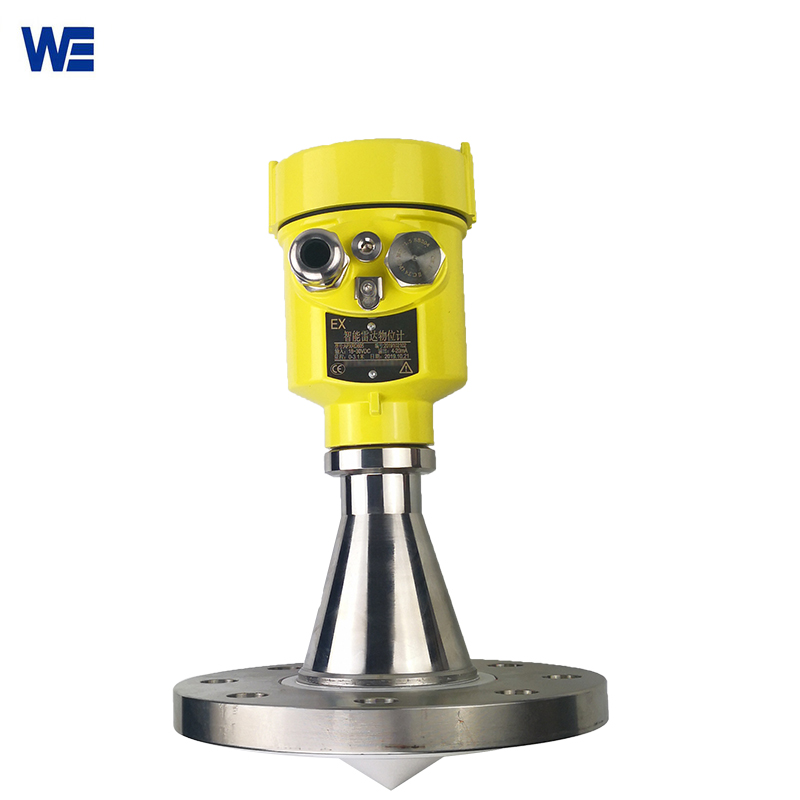

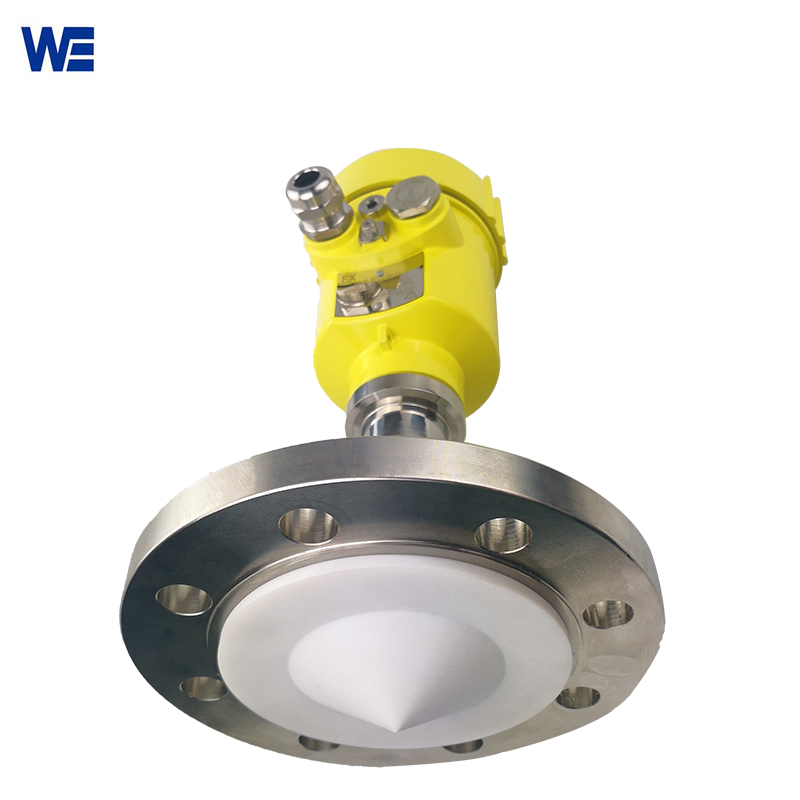

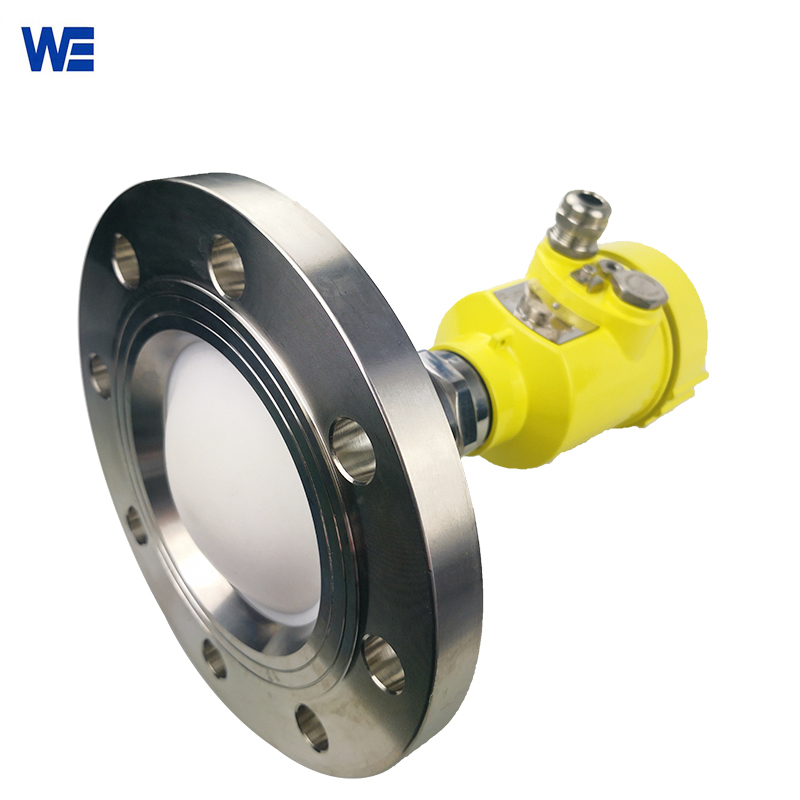

The radar and horn antennas are positioned on the upper side of the flange, making this Radar Level Sensor For Volatile Liquid unique. This model’s highlight is the closed sealing PTFE liner. Since the PTFE liner is the sole component that enters the tank, the RD806 radar level sensor is, on the one hand, incredibly hygienic and won’t contaminate the liquid inside. The RD806’s LCD display panel can also guarantee simple operation and parameter tweaking.
Features Of Radar Level Sensor For Volatile Liquid RD806:
Model | Radar Level Sensor For Volatile Liquid RD806 |
Medium Features | Hygienic Liquid Storage,corrosive container |
Shipping weight | 3.5kgs |
Measuring range * | 0-30m |
Accuracy | ±3mm |
Resolution | 1mm |
Display | LCD display |
Measured interval | 1s (according to parameter setting) |
Adjustment time | 1s (according to parameter setting) |
Microwave frequency | 26GHz |
Output signal * | 4-20mA (can be connected with HART), RS485/232 |
Power supply * | DC 6-24V, AC 220V/50Hz |
Material | Shell: aluminum; Antenna: SS316 with inner PTFE |
Pressure | Maximum 4MPa |
Shock resistance | 10m/s2, (10~150)Hz |
Communication protocol | Modbus |
Storage temperature | -40~+100℃ (-40~+212℉) |
Process connection (antenna) temperature | -40~+150℃ (-40~+302℉) |
Protection class | IP67 |
Electrical connection | 2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2″ NPT |
Installation * | G1-1/2″A thread, vertical bracket, flange |
Warranty | 12 months |
