3051GP Pressure Transmitter
3051GP presssure transmitters are widely used in the field of industrial automation field. Pressure transmitter can be used in railway construction, construction, aerospace, military, petrochemical, oil well excavation, power equipment, shipbuilding, pipeline transportation and so on.
3051GP presssure transmitters are widely used in the field of industrial automation. Pressure transmitter can be used in railway construction, construction, aerospace, military, petrochemical, oil well excavation, power equipment, shipbuilding, pipeline transportation and so on.

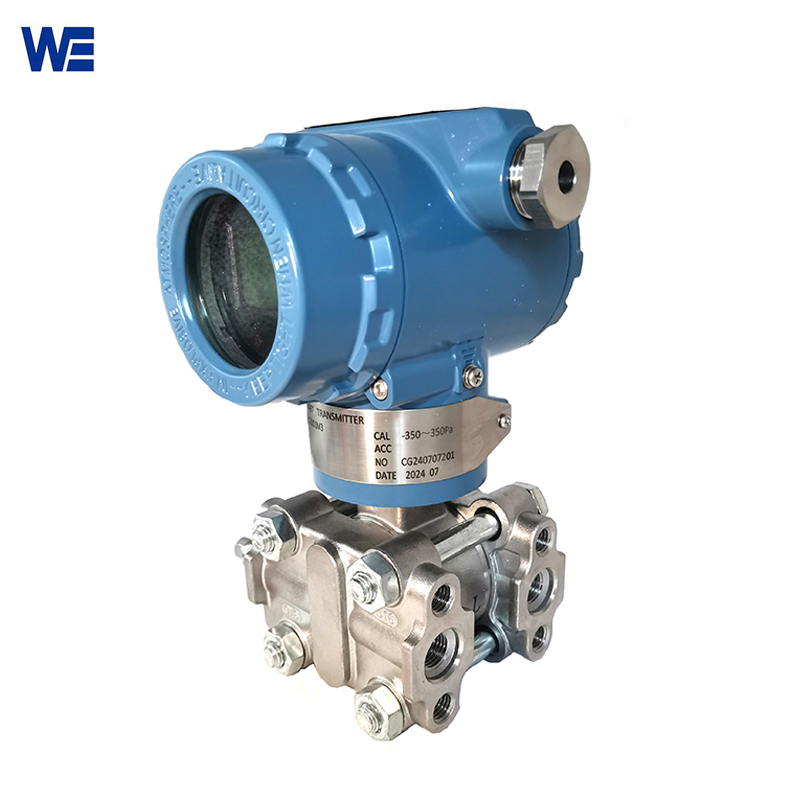

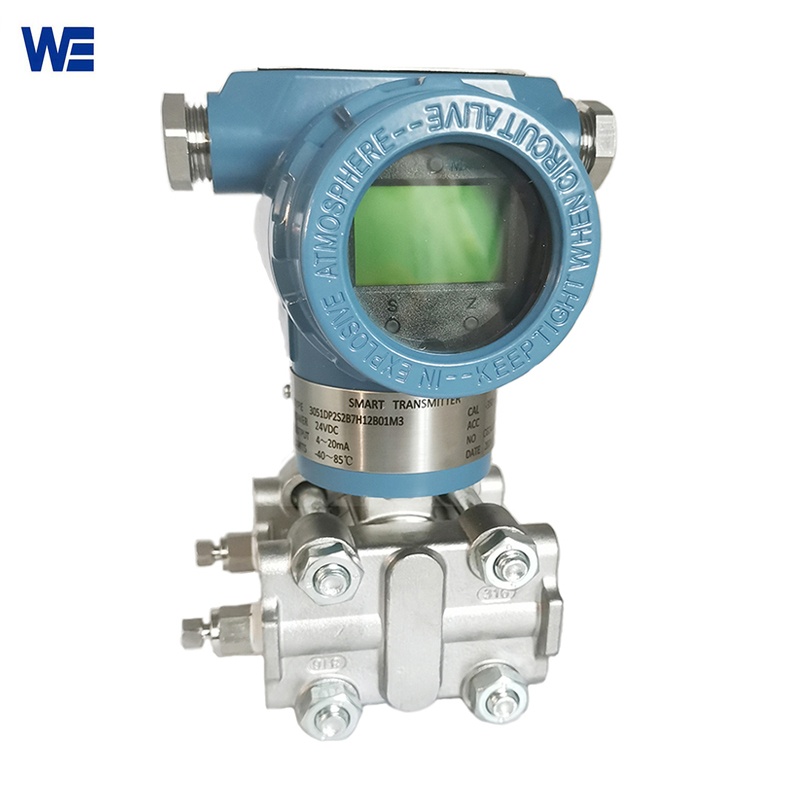

From the outside, the 3051GP pressure transmitter has only one interface. The main structure of the pressure transmitter is the sensor and the housing and dial. The appearance of the 3051GP pressure transmitter is very similar to that of the differential pressure transmitter. It follows the technology of the traditional capacitive transmitter and adds new functions such as communication. When installing, make sure that there is no strong electromagnetic interference around.
| Name | Pressure transmitter-3051GP |
| Application | Gauge pressure |
| Measuring range(MPa) | 0-41MPa |
| Output | 4-20mA/HART |
| Power supply | 9-36VDC |
| Accuracy | 0.1% |
| Stability | ±0.2% of URL for 2 years |
| Working temperature | -25 to +95°C |
| Dimension | 102mm(W)*188mm(H)*130mm(D) |
| Weight | 3.5kg |
| Display | 5 Digits programmable & 0-100% Bargraph |
| Zero calibration | Automatic zero calibration by press button |
| Damping | 0-32 seconds |
| Response time | 200mS |
| Mounting | Bracket on 2” pipe |
| Humidity | 0-100 relative humidity |
| Turn on time | 2 seconds with minimum damping |
| Keypad | 3 internal keys for programming and output setting |
| Current output | 4-20mA 2 wires with Hart signal |
| Load | ohm=(Vdc-9)*50 |
| Drains/vents | Stainless steel 304/ stainless steel 316 |
| Location of drain hole | Process flange rear face, process flange side upper not, process flange side lower |
| Process flange O-ring material | NBR, FKM (temperature above -20 degrees Celsius) |
| Bolts & nuts | Carbon steel/ Stainless steel 316 |
| Diaphragm | 316L stainless steel, Hastelloy C |
| Filling fluid | Silicon oil, fluorine oil |
| Process flange direction | Horizontal process flange |
| Process connection | 1/4’’-18 NPT, 1/2’’-14 NPT(with adapter) |
| Mounting bracket | None, tubular bend bracket (carbon steel), wall mount bracket (carbon steel), tubular flat bracket (carbon steel), tubular bend bracket (stainless steel), wall mount bracket (stainless steel), tubular flat bracket (stainless steel) |

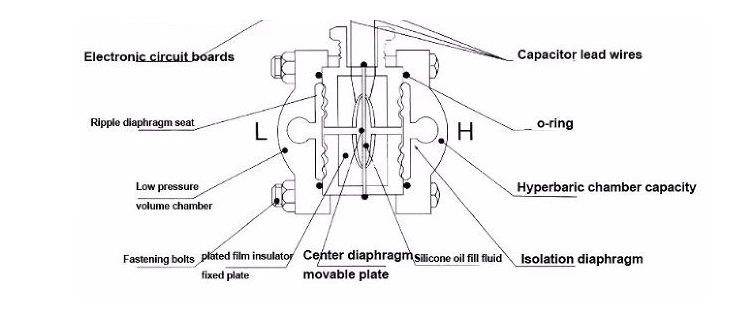

What is the working principle of the WE3051 series metal capacitive pressure transmitter?
A measuring diaphragm and electrodes on either side of the insulating sheet, which together form a capacitor, make up the pressure transmitter. The measuring diaphragm shifts when there is uneven pressure on both sides. When the capacitances on the two sides are not identical, the displacement will be modified through the oscillation and demodulation linkages since it is proportional to the pressure difference.
We carry high-quality inventory for fast delivery time , and provide a 12-month worry-free warranty.
